Ocean Water Bacteria Contamination Detection - ESP32-S3

Remote beach water quality classification based on enterococci levels using sensor fusion and LoRa

Project Overview

An Edge AI system trained with Edge Impulse that classifies ocean water quality by detecting enterococci bacteria levels using sensor fusion. Built for the Edge Impulse 2025 Hackathon, the device performs real-time inference on an ESP32-S3, transmits classifications via LoRa to an MQTT gateway, which forwards them to a Home Assistant dashboard and responds to voice assistant queries. Motivated by frequent beach closures and 24-hour lab result delays, the goal is to deliver immediate, remote assessments of swimming safety.

Demo Video: https://youtu.be/I6PYruD1Y70

GitHub Repository: https://github.com/burgueishon/TinyML-Water-Bacteria-Classification

Technologies

Hardware: ESP32-S3 • ESP32-WROOM-32 • RA-02 LoRa • DS18B20 • SHT41 • SEN0189 • SEN0244 • SEN0161

Platforms: Edge Impulse Studio • Arduino IDE • Home Assistant

Technologies: TinyML / Edge AI • LoRa 433 MHz • MQTT • WiFi

Languages: C++ • Python

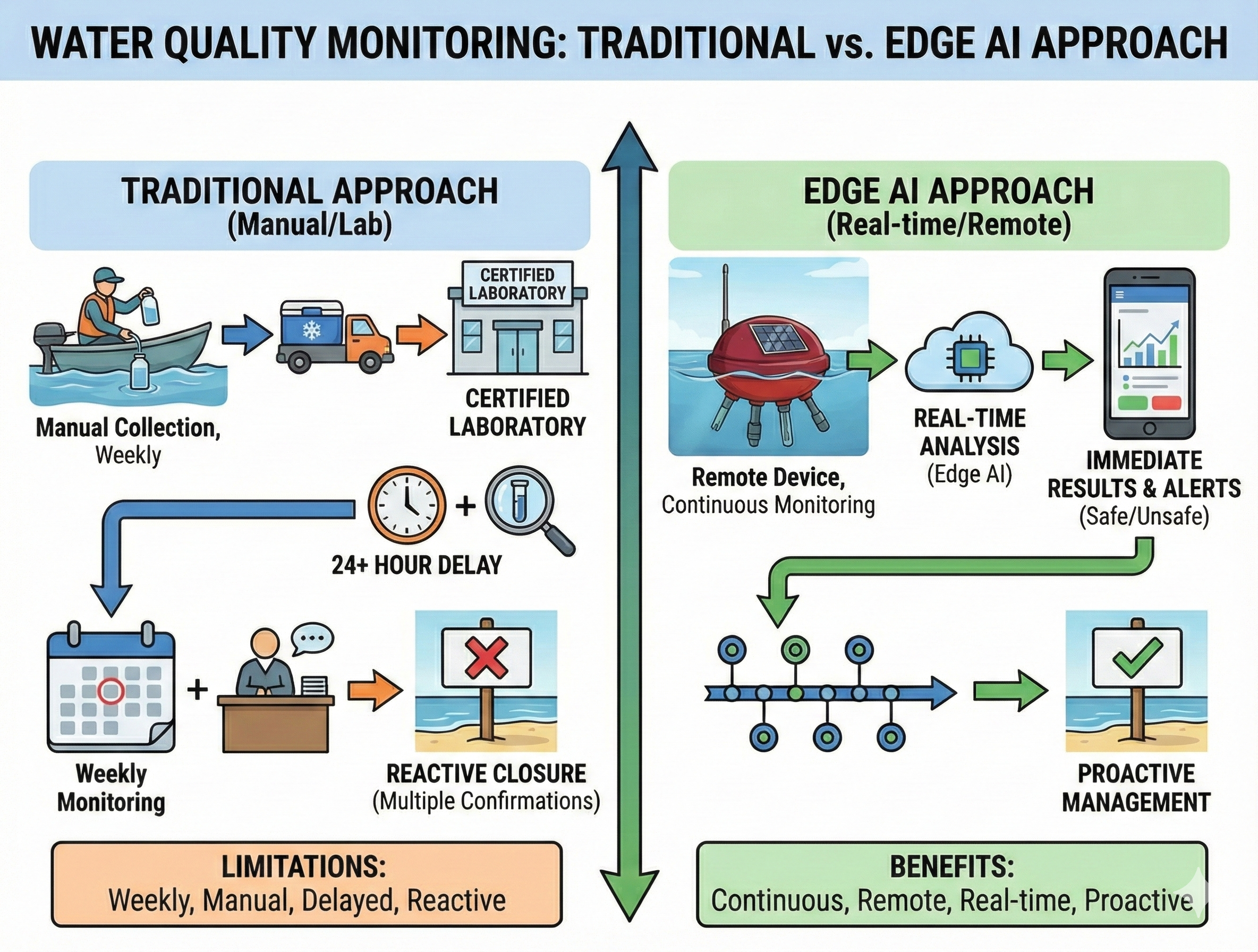

The Problem

Traditional beach water quality testing has significant limitations:

• 24-hour delay for lab results
• Weekly sampling misses contamination events between tests
• Manual collection requires personnel at each location

The Solution

A TinyML device that provides:

• Real-time classification (safe/unsafe)
• Continuous monitoring capability
• Remote operation via LoRa

Hardware

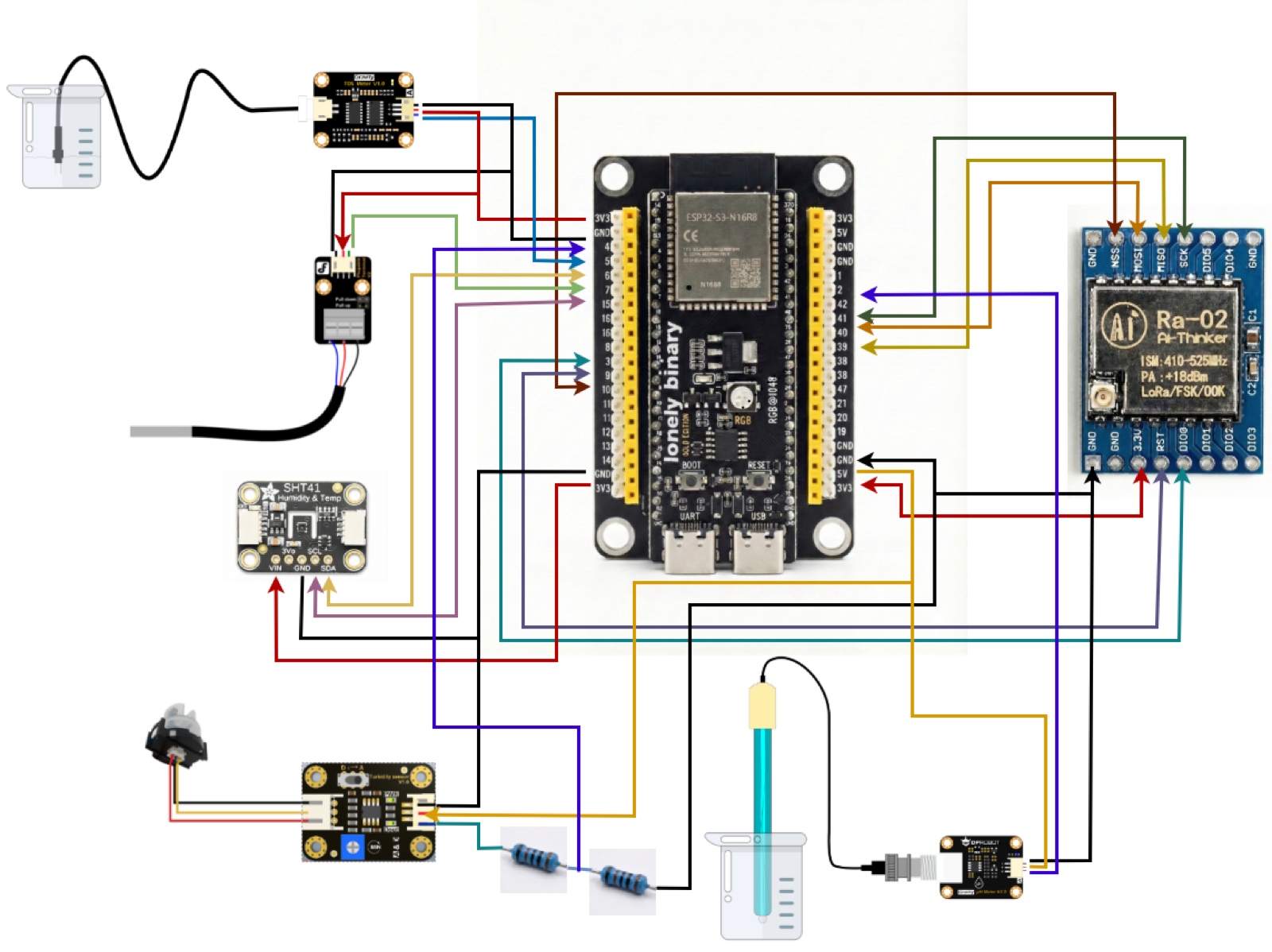

Sensor Node (ESP32-S3)

• Water Temperature: DS18B20 (OneWire)
• Ambient Temperature: SHT41 (I2C)
• Turbidity: SEN0189 (ADC + voltage divider)
• TDS: SEN0244 (ADC)
• pH: SEN0161 (ADC)
• Communication: RA-02 LoRa 433MHz

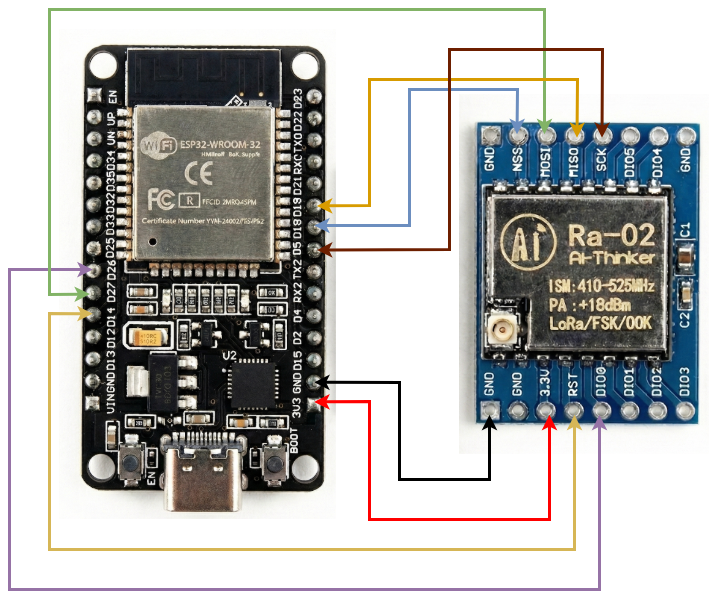

Gateway (ESP32-WROOM-32)

• LoRa receiver
• WiFi/MQTT bridge to Home Assistant

Dataset

Collection Process

• Location: Revere Beach, Massachusetts
• Period: October 23 - November 13, 2024
• Laboratory: Biomarine Research Corporation (Gloucester, MA)
• Threshold: 104 CFU/100mL (Massachusetts standard)

Samples

Final Dataset

• Total: 36 CSV files
• Safe: 26 files (72%)
• Unsafe: 10 files (28%)
• Sampling rate: 1 Hz
• Duration: 60 readings per file

Model

Input Features (5)

1. temp_c - Water temperature (°C)
2. amb_temp_c - Ambient temperature (°C)
3. turb_v - Turbidity voltage (V)
4. tds_v - TDS voltage (V)
5. ph_v - pH voltage (V)

Architecture

• Processing: Raw Data block
• Learning: Neural Network Classifier
• Output: Binary classification (safe/unsafe)

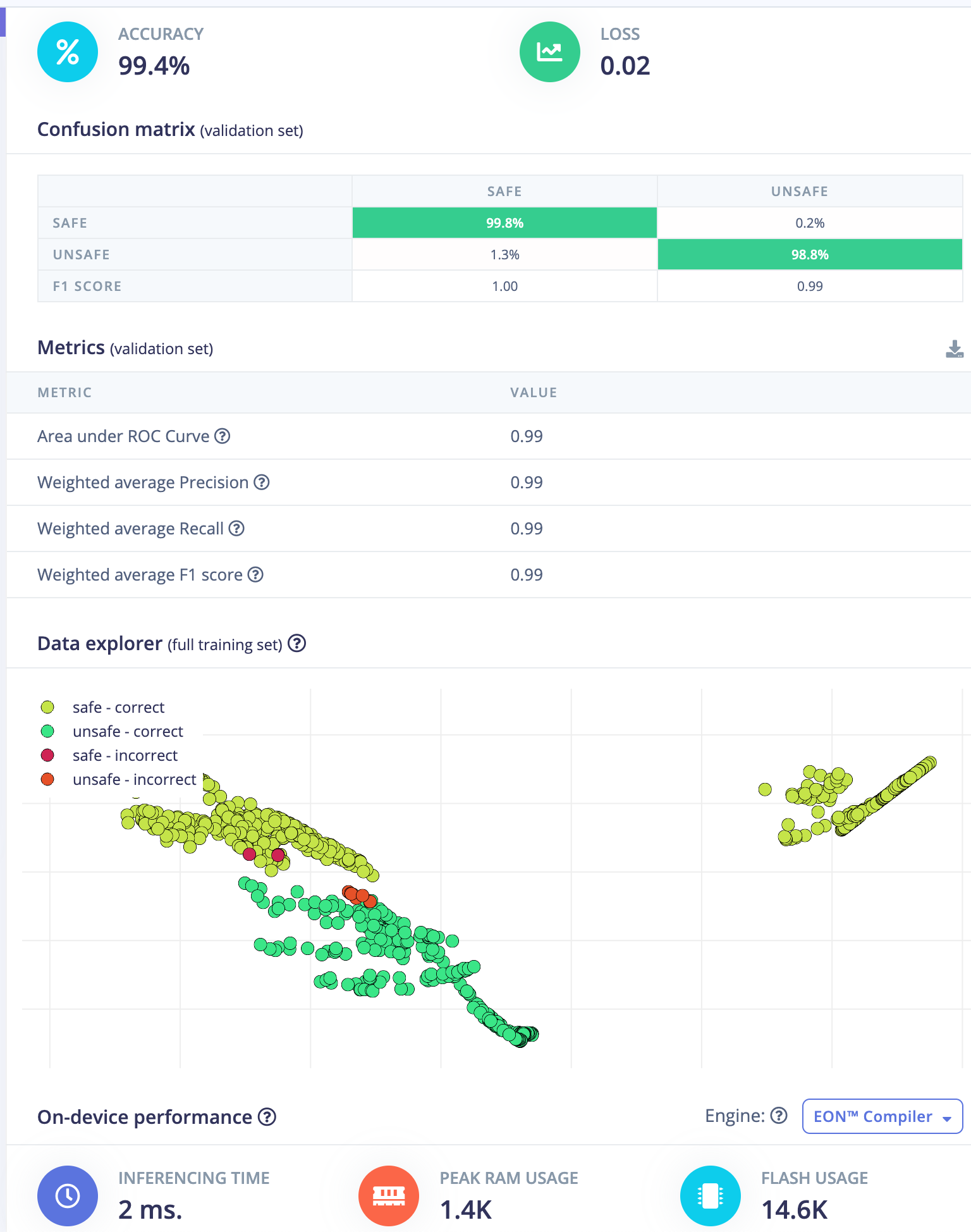

Training Results

Two experiments were compared:

Raw Data significantly outperformed Spectral Features, achieving 99.4% accuracy with excellent precision and recall for both classes.

Note: The default 67/33 train-test split raises a warning due to the limited dataset size; results are indicative and not production-ready.

Resource Usage

• Inference time: <10ms on ESP32-S3
• Flash usage: ~27KB
• RAM usage: ~368 bytes

Deployment

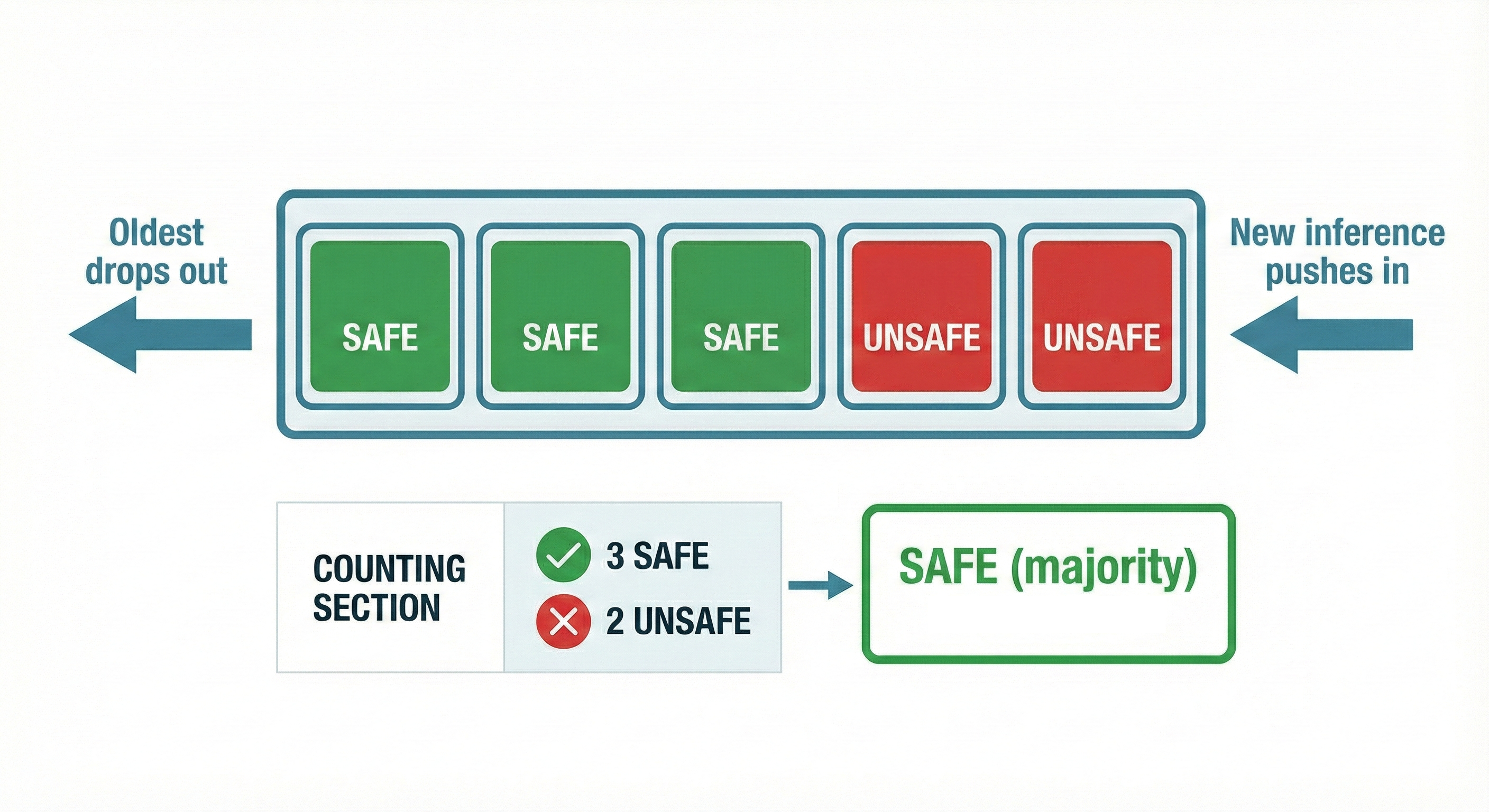

Inference Stabilization

Implemented rolling majority voting:

• Window of 5 consecutive inferences
• Final result = majority vote
• Confidence = averaged scores
• Eliminates single-inference noise

System Integration

• Sensor Node: ESP32-S3 with Edge Impulse model, transmits via LoRa

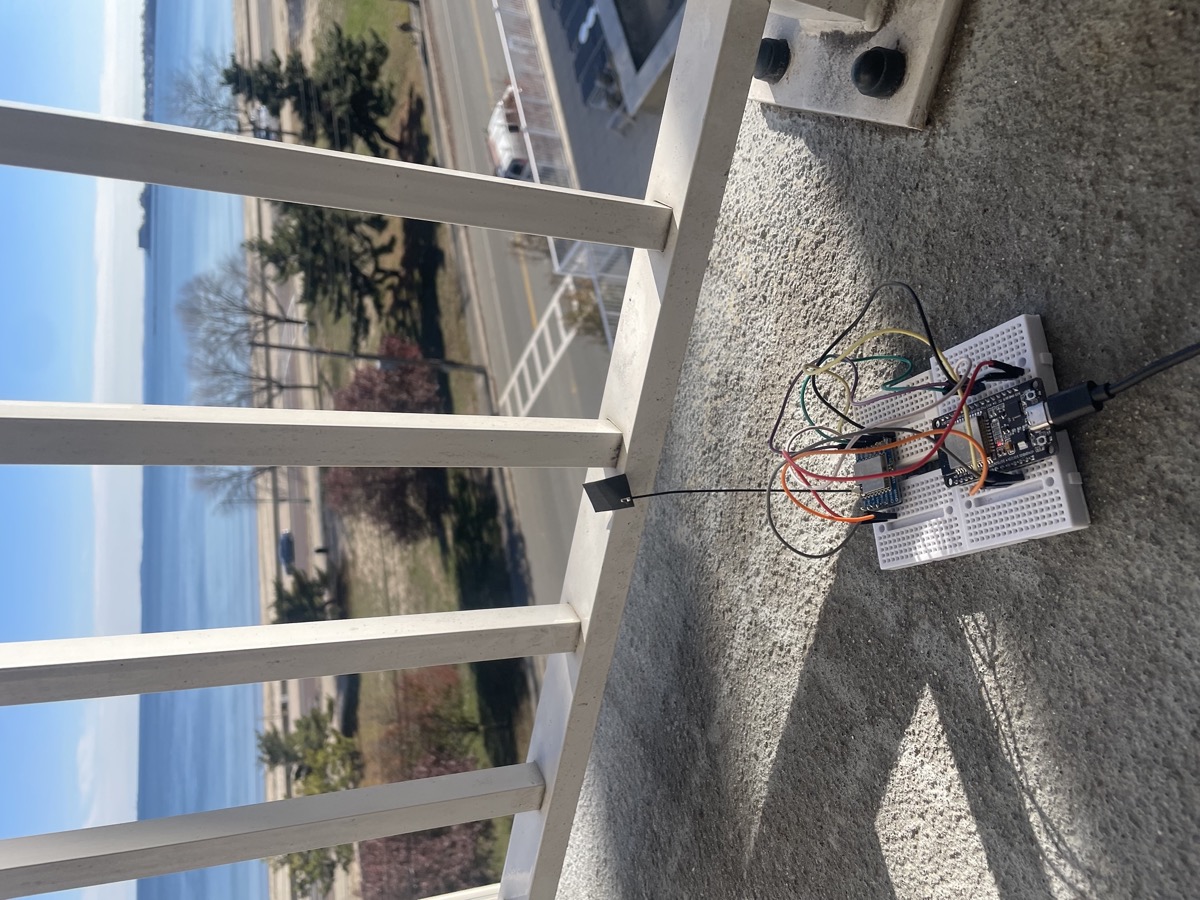

• MQTT Gateway: ESP32-WROOM-32, bridges LoRa to WiFi/MQTT

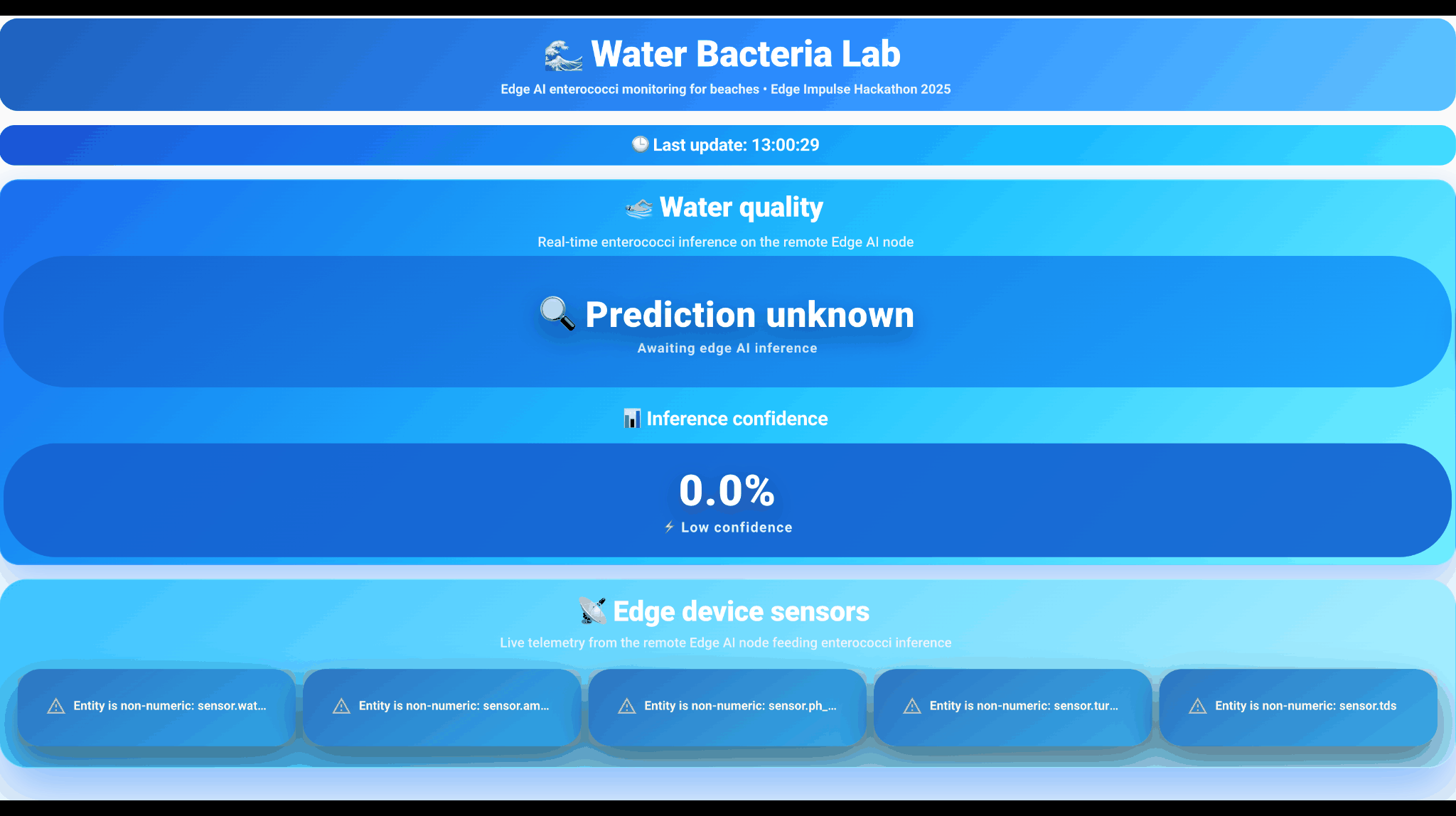

• Home Assistant: Dashboard with color-coded status, voice assistant queries (ESP32-S3-BOX with Claude)

Results

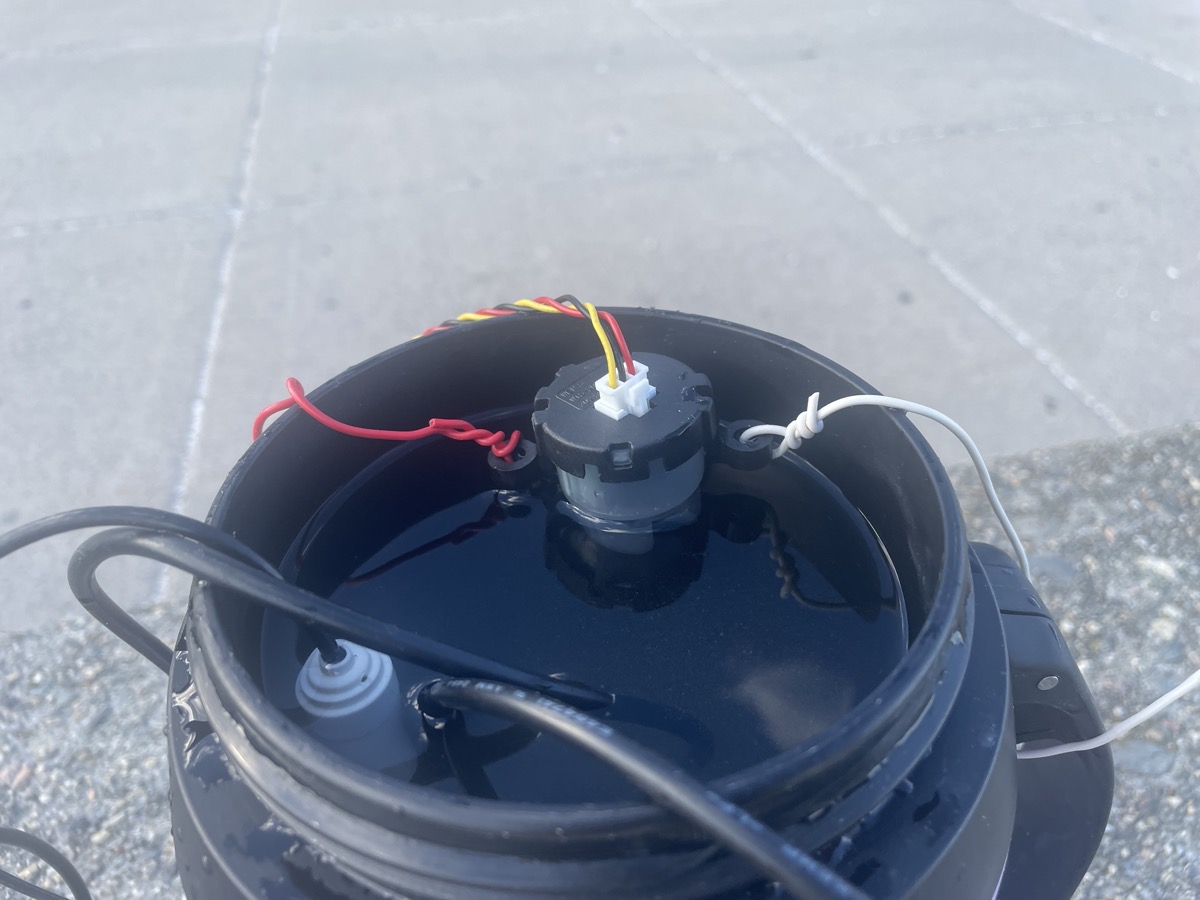

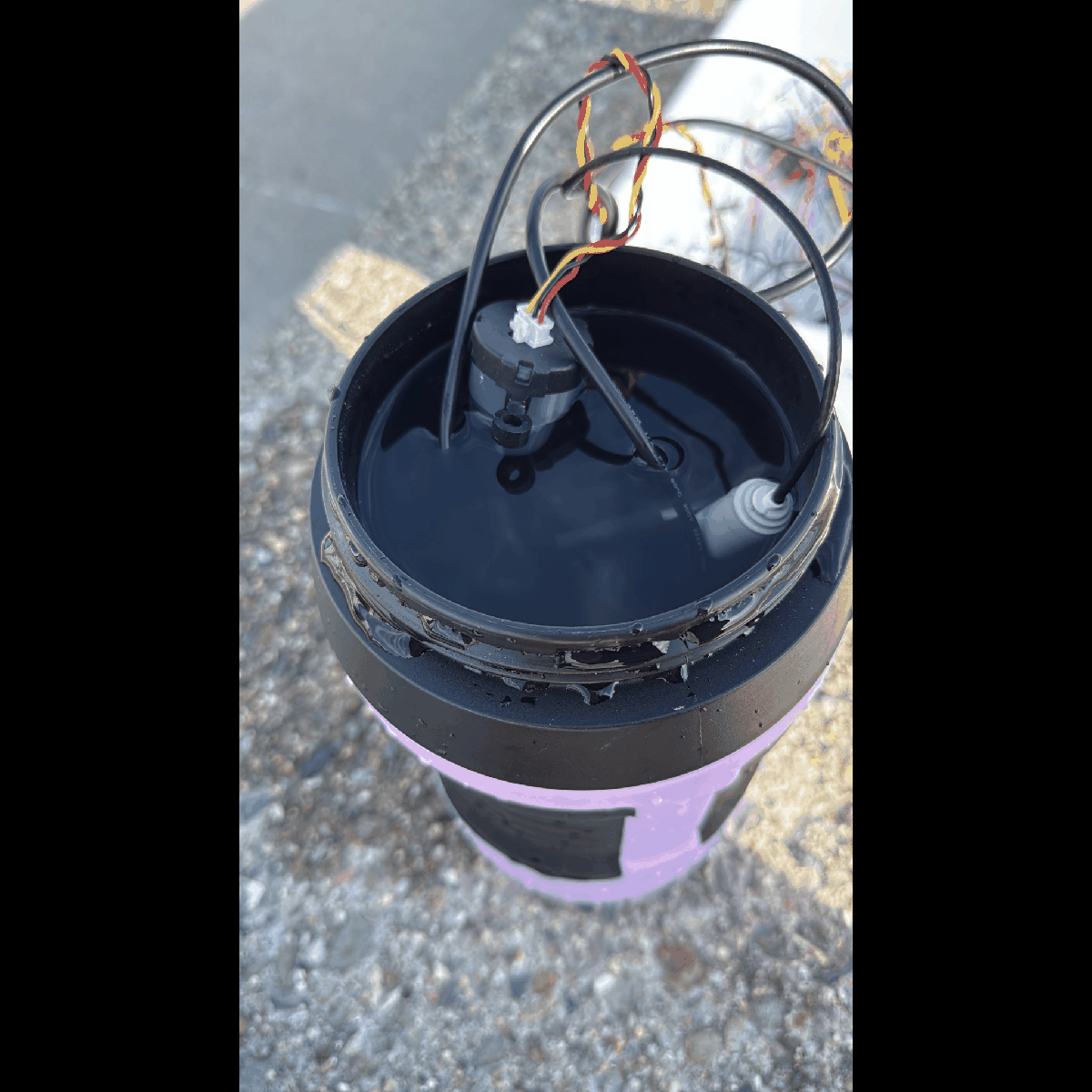

Live Testing

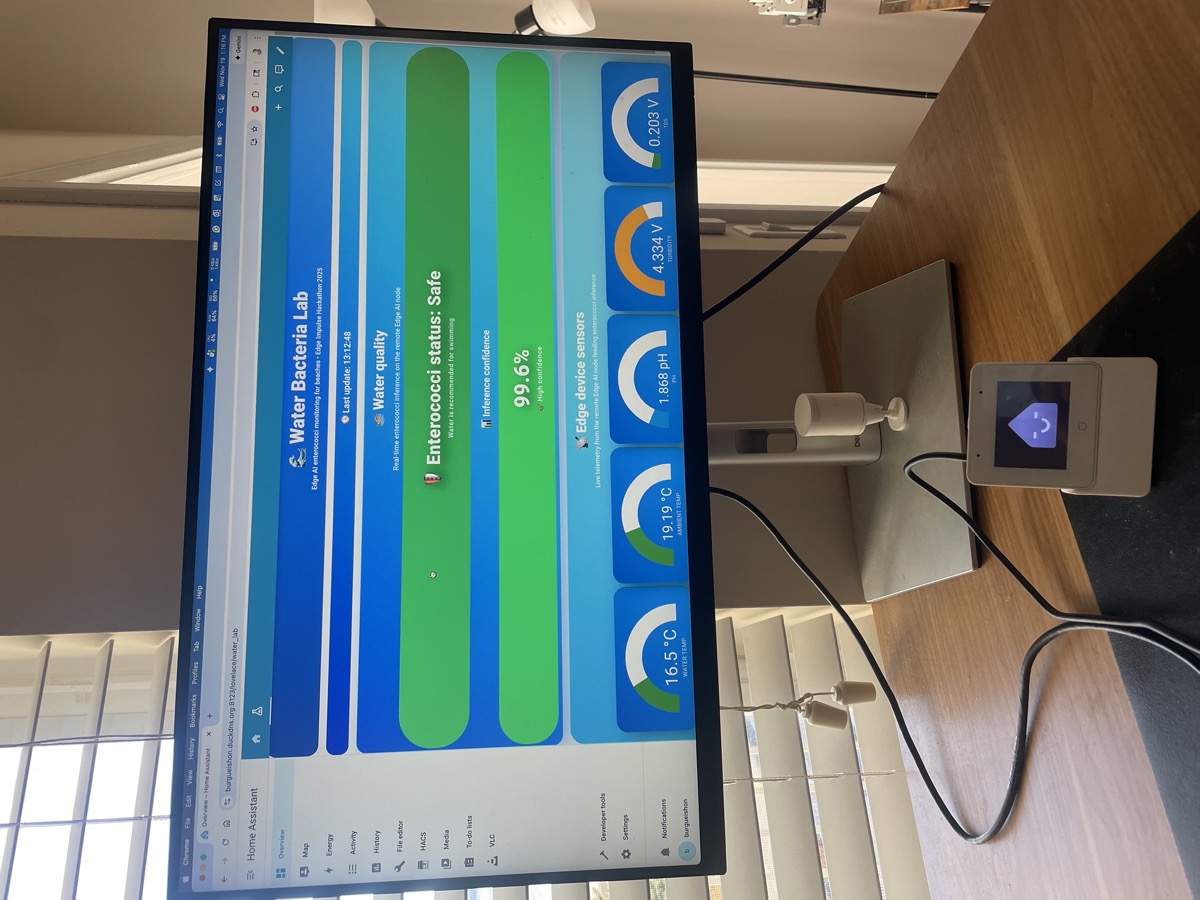

Successfully deployed and tested with real ocean water. System provides stable classifications with confidence indicators displayed on Home Assistant dashboard.

Laboratory Validation

Final sample sent to laboratory for verification:

• Model prediction: SAFE (99.6% confidence)
• Lab result: 10 CFU/100mL
• Match: Yes ✓

The model correctly classified the water as safe, confirmed by laboratory analysis showing bacteria levels well below the 104 CFU/100mL threshold.

Conclusions

This project shows it's possible to measure complex variables like bacteria in water, which can't be directly detected with sensors, by using sensor fusion and machine learning to correlate measurable parameters with those hidden variables.

I acknowledge the limitations of a small dataset. This model isn't ready for production use. But this project demonstrates that it is possible, with a larger dataset, additional sensors, and environmental metadata.

Future Work

• Add rain sensor - Rainfall significantly affects bacteria levels
• Add salinity sensor - Could improve classification accuracy
• Migrate to LoRaWAN - Use The Things Network (TTN) for better coverage
• Waterproof buoy enclosure - Enable actual ocean deployment
• Larger dataset - More samples across different seasons and conditions
• Multi-class classification - Safe / Caution / Unsafe / Closure levels
• Regression model - Predict actual CFU/100mL counts instead of binary classification

Links

• GitHub: https://github.com/burgueishon/TinyML-Water-Bacteria-Classification
• Demo Video: https://youtu.be/I6PYruD1Y70

Author

• Luis Burgos.
• Boston, Massachusetts

Built for the Edge Impulse 2025 Hackathon - Edge AI Application Track
